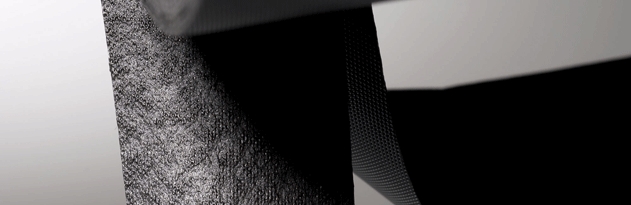

SELF AMALGAMATING TAPES

A range of tapes which amalgamate (bond together) when applied under tension as an insulation wrap. They become a homogeneous, void-free mass without need for external heat or pressure.
The main applications are for high voltage electrical insulation, moisture proofing and corrosion prevention for telecommunication and other industrial uses.

The tapes are flexible and versatile in application. They can be easily applied by hand, contouring closely to irregular shapes and bends to form a permanent insulation layer or waterproofing barrier.

The life of the tapes exposed out of doors in the UK is expected to be several years. In enclosed locations, such as cables, the durability should be at least equal to that of the cables. Where tape may be subject to abrasion or exposure to weather an external covering with a high quality pPVC tape is recommended.

2501
2515
2517
Base
Polyisobutylene
Ethylene Propylene Rubber (EPR)
Ethylene Propylene Rubber (EPR)
Colour
Black
Black
Black
Thickness
0.50mm
0.50mm
0.75mm
Elongation
600%
750%
800%
Dielectric Strength
(short time method)
40kv/mm
36kv/mm
36kv/mm
Temperature Range
-40 to +90 ° C
-40 to +90 ° C
-40 to +90 ° C
Short Term
100 ° C
130 ° C
130 ° C
Price / Dimensions
19mmx10m=£2.00 per roll Ex-works
25mmx10m=£2.80 per roll Ex-works
38mmx10m=£3.97 per roll Ex-works
19mmx10m=£2.68 per roll Ex-works
25mmx10m=£3.50 per roll Ex-works
19mmx10m=£2.23 per roll Ex-works
Availability
lead time = up to 3 weeks
immediate from stock
lead time = up to 3 weeks

The most important tapes out of an extensive range are:

2501 PIB Self Amalgamating Tape

For jointing/splicing and repair of a wide range of power and distribution cables up to 46kV. Used by postal and telecommunication authorities in conjunction with pPVC insulation tapes for making watertight seals, both above and below ground. Tapes can be applied for protection against corrosion on metal pipe work and waterproofing of electrical components.


2504 PIB Self Amalgamating Tape

For jointing/splicing and repair of a wide range of power and distribution cables up to 46kV. 2504 is a general-purpose insulating, self-amalgamating tape based on PIB (Polyisobutylene) rubber. Its colour is black.


2515/25l7 EPR Self Amalgamating Tape

For jointing/splicing and repair of a wide range of solid dielectrical power cables up to 69kV. Also used for insulating and waterproofing electrical components and connections at lower voltages. Can be used in conjunction with pPVC insulation tape.


2547 EPR Self Amalgamating Tape

2547 is an insulating, self-amalgamating tape based on EPR (Ethylene Propylene Rubber). Its colour is black.
