Hyperbaric Oxygen Therapy

Hyperbaric Oxygen Therapy
thereputic benefits

Research shows Hyperbaric Oxygen Therapy (HBOT) has thereputic benefits.

Hyperbaric Oxygen Therapy (HBOT): consisting of 100% purity Oxygen in 2 ATA Pressure Chamber (home oxygen tank treatment 90% Oxygen at no pressure)

Hertfordshire Multiple Sclerosis Therapy Centre, 30 Campus Five, Letchworth Garden City, Hertfordshire, SG6 2JF

Meire Andrade meireandrade@hmstc.net

Hyperbaric oxygen therapy (HBOT) has been shown to induce angiogenesis (Angiogenesis : new blood vessels form from pre-existing vessels, the growth of the vasculature by processes of sprouting and splitting)

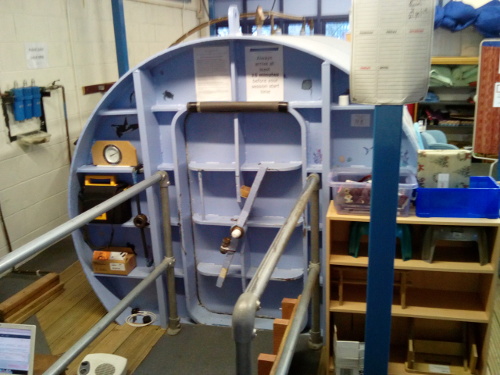

Hyperbaric Oxygen Therapy Chamber (Hard Walled), capable of 16.5 feet, 24 feet and 33 feet pressure which is FSW: Feet of Sea Water or 2 ATA: Atmospheres (Absolute), Equivalent to 200% of oxygen, inducing new blood vessels required for Angiogenesis , which cytokines also cause Angiogenesis .

Higher pressure has been recognised to have better recovery and deep tissue oxygenation.

The Oxygen Chamber has a maximum capability (with medical supervision), but not ever performed, rated at 80 feet.

£31 per hour £620 for 20 sessions of hour each, used all within a twenty-week period (a block of 20 sessions). Costs were previously $520 (£26 per hour), prior then pre COVID 2020 £400 (£20 per hour)

Treatment 1 session £ 31 per month or £ 372 per annum of HBOT, 1 hour session per month

Hyperbaric Oxygen Therapy : Dr. Shai Efrati

Reverse Aging with 100% pure oxygen in a hard walled (highest) compression chamber, required for increased Angiogenesis , Telomeres length of T helper, T cytotoxic, natural killer and B cells increased and for non-healing wounds. HBOT leads to higher levels of ROS production by the mitochondria.

Hypoxia is a state in which oxygen is not available in sufficient amounts at the tissue level to maintain adequate homeostasis; this can result from inadequate oxygen delivery to the tissues either due to low blood supply or low oxygen content in the blood.

Web: Aviv-Clinics
Web: Reverse Aging, Dr. Shai Efrati
Web: HBOT increases telomere length and decreases immunosenescence
Web: Building a Hyperbaric Chamber
Web: The effect of hyperbaric oxygen on mitochondrial and glycolytic energy metabolism: the caloristasis concept

Self Build Hyperbaric Oxygen Chamber
cost breakdown :
O2 Concentrator, ran at 20 psi £1198
BULLARD EDP10 Ambient Air Pump, ran at 7 psi £2213
Stainless Steel 3/8 sheet metal propane tank, double swivel door, depressurise > 15 minutes

Drive Devilbiss 10 Litre Compact Oxygen Concentrator 1025 £1198
Technical Specifications :
Outlet Pressure : 20.0 ± 1.0 Pounds per square inch (psi) or 138 +/- 7 Kilopascals (kpa)
Oxygen Percentage : 2-10 LPM = 87 %-96%
Electrical Requirements : 230V, 50 Hz
Power Consumption : 670 watts average
Weight : 19 kg
Dimensions : 62.2 x 34.2 x 30.4 cm
Warranty : 3 years
Classification : ll Type B

The oxygen concentrator we equip for them chamber Outlet Pressure is 11.6 Pounds per square inch (psi) or 80 Kilopascals (kpa). The oxygen is pumped into chamber inside and chamber inside pressure is 8.7 Pounds per square inch (psi) or 50/60 Kilopascals (kpa), in case of backflow, oxygen concentrator output pressure must higher than chamber pressure.

So inside chamber, users could get 10 liter oxygen / minute, which is better for the treatment. Most of our users who used for medical application will update to 10 liter / minute, which will enhance the treatment effect.

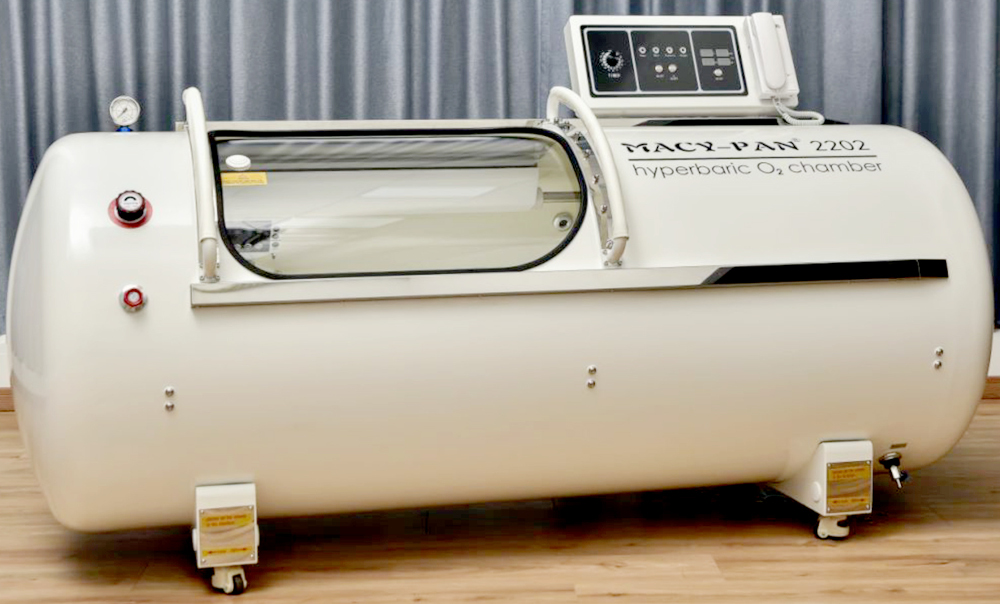

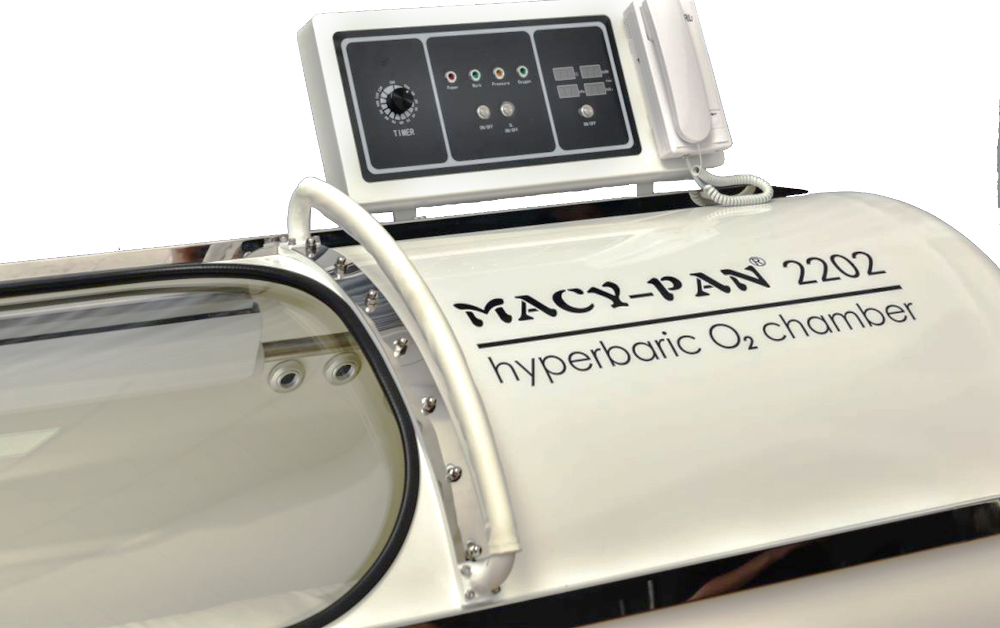

HP2202 Hard Type Hyperbaric Oxygen Chamber $17300 Uk Delivered door to door = £12770 UK Delivered door to door

Bullard ADP Free-Air Pumps are oil-less / BULLARD EDP10 Ambient Air Pump,13 1/2,3/4 hp, It is a standard 115v 60hz single phase motor / Bullard EDP10 Free-Air Pump for 1-2 Respirators, 115 V, 1-2 users Item #: BL-EDP10, m.unkelbach@leodegroot-egh.de

Bullard EDP10 Free-Air Pump - 10 Cfm - Electric Driven, 3/4 HP Condition: New, Product ID: 104092511 £ 2213

The effect of hyperbaric oxygen on mitochondrial and glycolytic energy metabolism: the caloristasis concept
